How to Restore Display Default Settings
In this article: You’ll find the default torque assist settings that come pre-set on all MOD BIKE V3 models.
If you ever change your torque settings or want to return them to the factory configuration, this chart will help you put everything back to the default values.
The steps below show how to access the torque settings menu and restore them to their original numbers.
This Article Applies to the Following Bikes
Difficulty
★☆☆ Easy
Estimated Time
0 – 5 Min
Before You Start
Preparation
Make sure your bike is safely parked and powered ON.
Steps | All Bikes

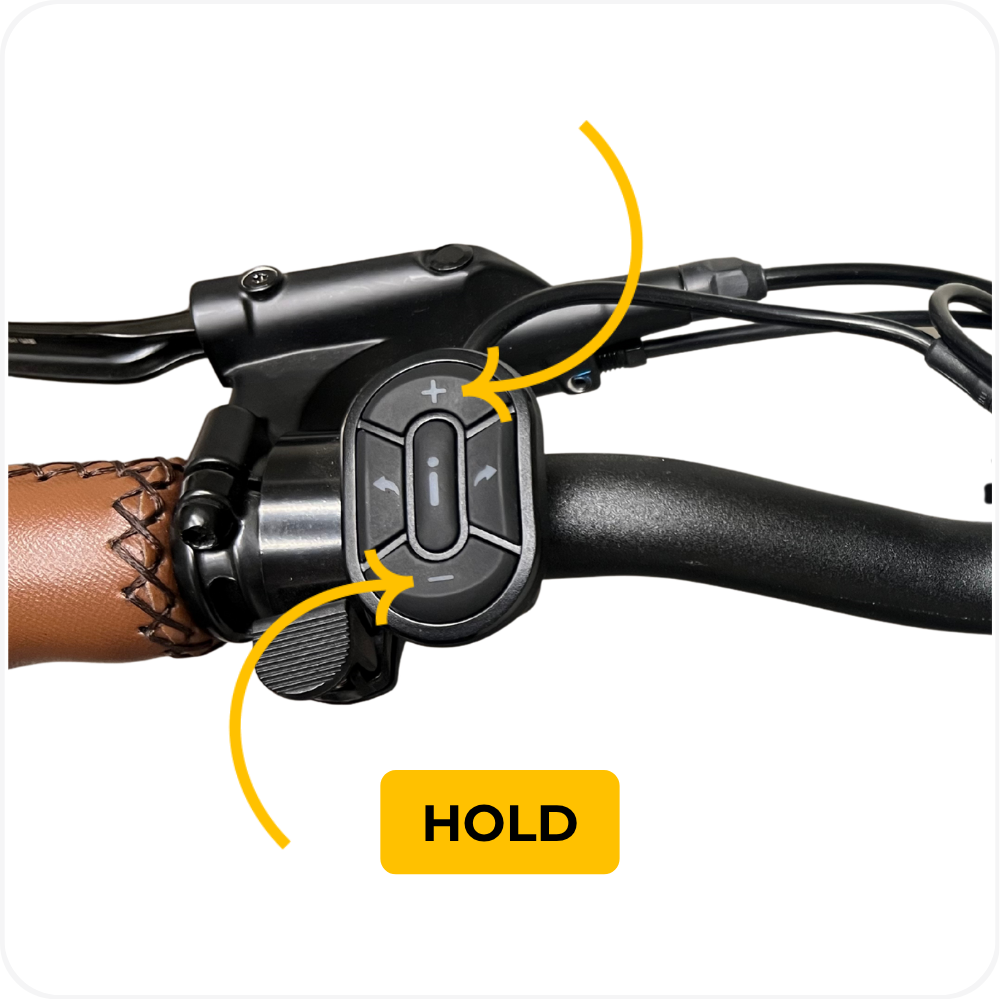

Step 1: Open the Display Menu
Hold the “+” and “–” buttons together for about three seconds to open the Menu screen.

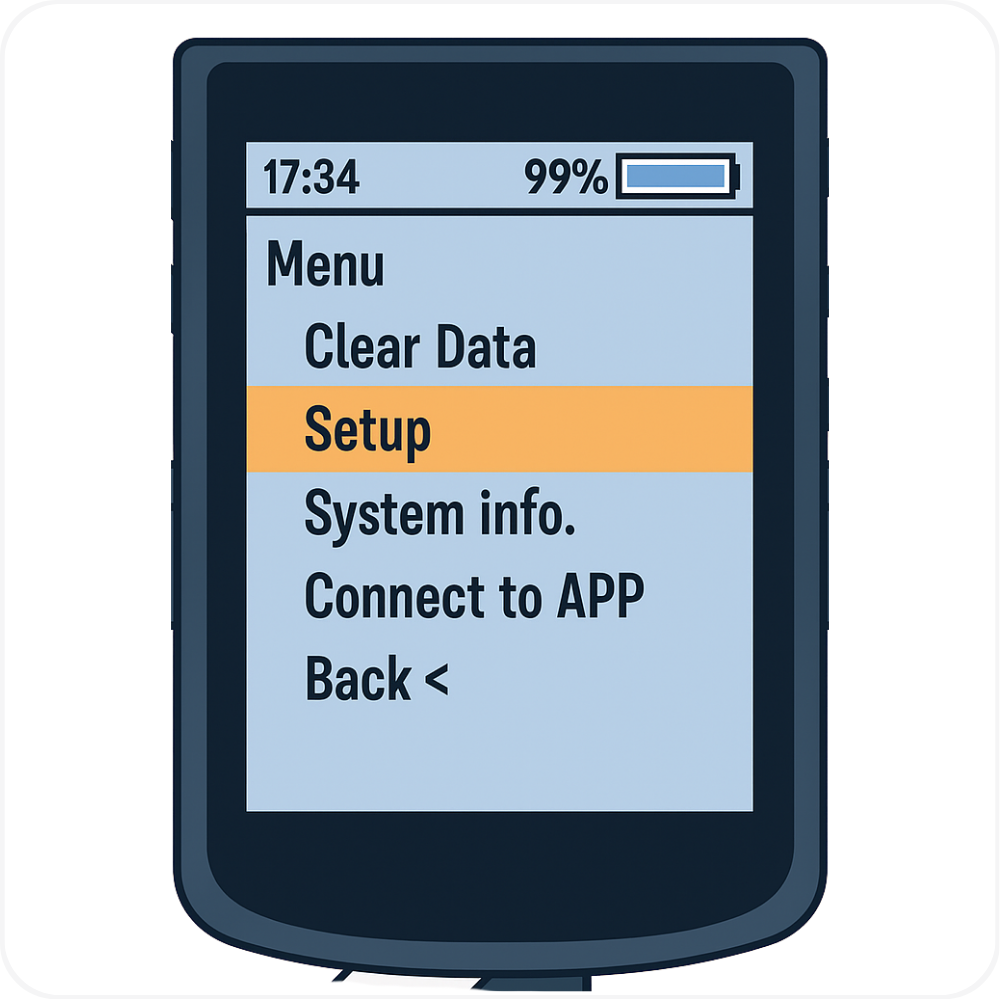

Step 2: Go to Setup
Use the “+” or “–” buttons to scroll to Setup, then press “i” to select it.

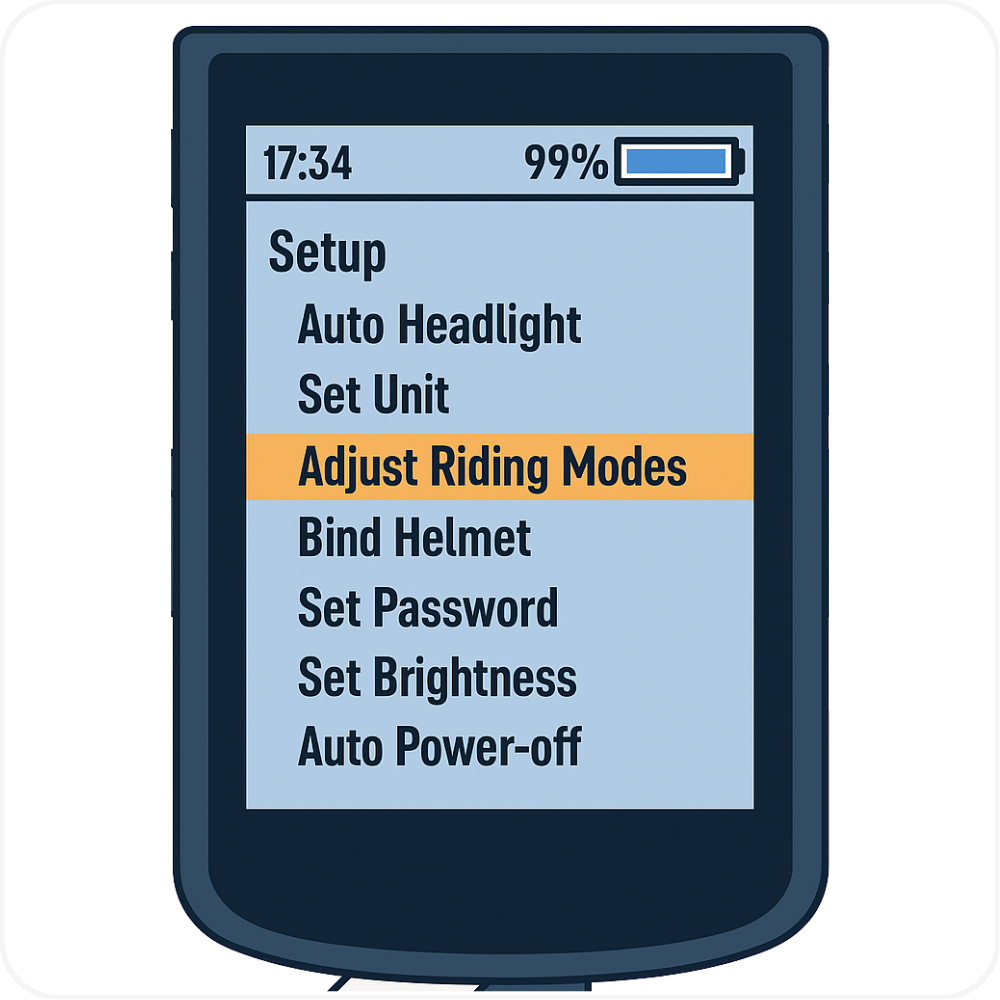

Step 3: Select Adjust Riding Modes
Scroll down to Adjust Riding Modes and press “i” to open it.
Step 4: Select Assist Level

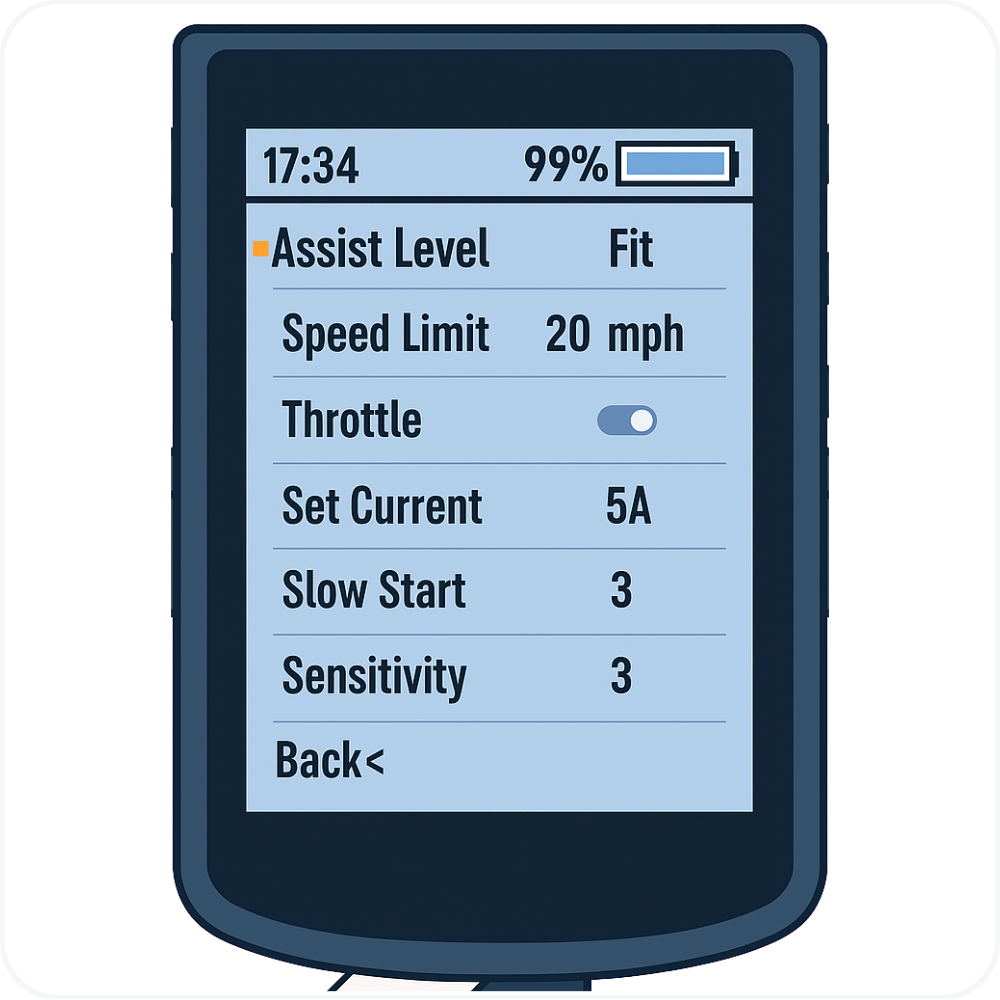

The first screen will show the Fit assist level with its parameters. Highlight Assist Level and press “i” to activate selection.

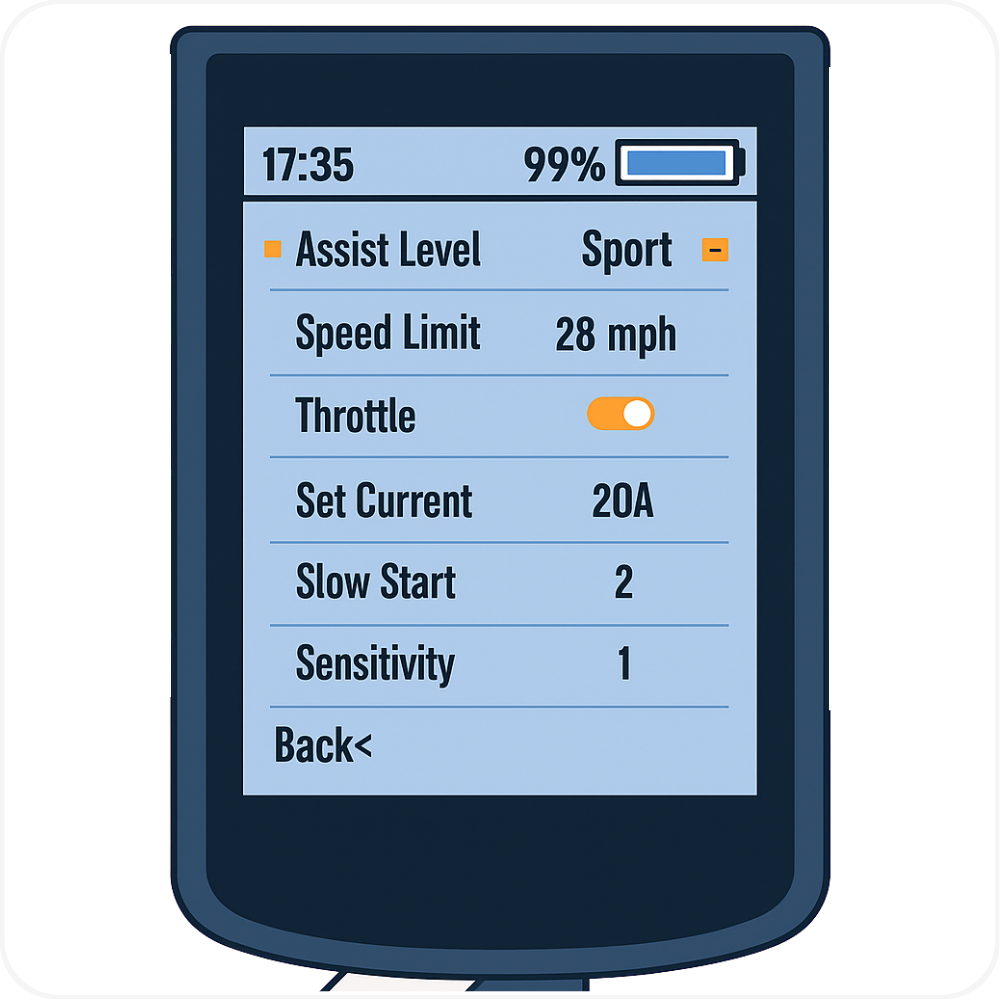

Use “+” or “–” to cycle through the available levels (Fit, Eco, Cargo, Sport, Turbo). Press “i” again to confirm your choice.
Step 5: Adjust Parameters
Each assist level includes five adjustable settings (Speed Limit, Throttle, Set Current, Slow Start, Sensitivity).
Highlight a parameter using the “+” or “–” buttons, press “i” to activate it, then use “+” or “–” to change the value.
| Assist Level | Speed Limit | Throttle | Set Current (A) | Slow Start | Sensitivity |
|---|---|---|---|---|---|
| Fit | 20 mph | Off | 5 | 3 | 3 |
| Eco | 20 mph | On | 10 | 2 | 2 |
| Cargo | 28 mph | On | 17 | 1 | 3 |
| Sport | 28 mph | On | 20 | 2 | 1 |
| Turbo | 28 mph | On | 22 | 1 | 1 |
Step 6: Save and Exit
After confirming all settings, scroll down to Back < and press “i.”
Repeat this process on each screen until you return to the main display.
Troubleshooting
Display won’t save changes → Make sure you press “i” after each adjustment before moving to the next setting.
Throttle not working in certain modes → Verify that the Throttle option is set to “On” for the selected assist level.
Bike feels weaker or slower than usual → Check that Set Current (A) matches the factory value listed in the default settings chart.
Pedal assist feels jerky or delayed → Restore both Slow Start and Sensitivity to their default levels, then test again.
Display stuck in setup screen → Use the “–” button to scroll down to Back < on each screen and press “i” repeatedly until you return to the main display.
FAQs
Can I change these values for personal preference?
Yes. You can adjust them to fine-tune the bike’s feel, but higher torque or current settings may reduce range and increase motor wear.Why are some modes limited to 20 mph?
Fit and Eco modes are optimized for efficiency and Class 2 compliance. Cargo, Sport, and Turbo allow Class 3 performance up to 28 mph.My throttle doesn’t work after changing settings — is that normal?
Yes, if the Throttle option is set to “Off” for that assist level. Turn it back “On” and restart the display.
Warning
⚠️ Important Safety & Liability Notice These display settings are calibrated for safe and reliable operation. Changing torque or current parameters without proper knowledge can cause unpredictable motor behavior or excessive power draw. Only modify display settings if instructed by a qualified MOD BIKES technician or authorized service provider. Improper configuration may void warranty coverage and affect overall performance.
