MOD Quick Release Front Rack | User Guide

In this article: You’ll install the MOD Quick Release Front Rack and relocate your headlight. All MOD Bikes require removing the headlight first, installing the rack, and then mounting the headlight under the basket.

Note: These instructions begin with steps for MOD Easy bikes.
If you have any other MOD model, please scroll down to “Steps for All MOD Bikes (Except MOD Easy)” for the correct guide.

This Article Applies To The Following Bikes

Note: This accessory is not compatible with MOD Easy Sahara.

Difficulty

★☆☆ Easy

Estimated Time

10 - 15 Min

Before You Start

Tools you will need

• Adjustable Wrench (included in your bike tool kit)

• Multitool with Allen Wrenches (included in your bike tool kit)
• Bolt Tray (or any small container for screws)
• Zip-ties

Preparation

• Ensure your bike is powered off and standing securely on the kickstand.
• Lay out the rack and included hardware (quick-release bolts).
• Make sure you have good lighting and enough space to work around the front of the bike.

Steps for MOD Easy

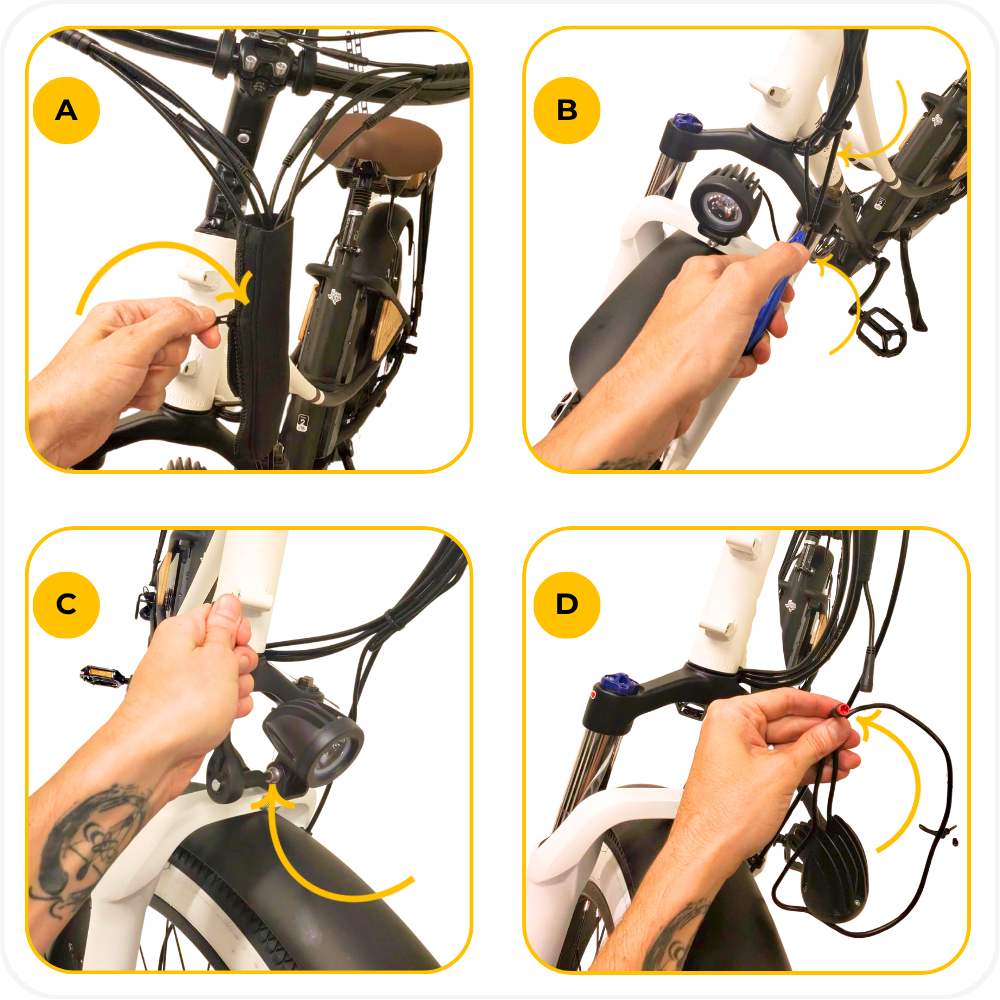

Step 1: Remove the headlight

1. Unzip the cable sleeve.
2. Cut the zip-ties.
3. Disconnect the headlight's julet connector.
4. Use your wrenches to remove the headlight bolt and set the lamp aside.

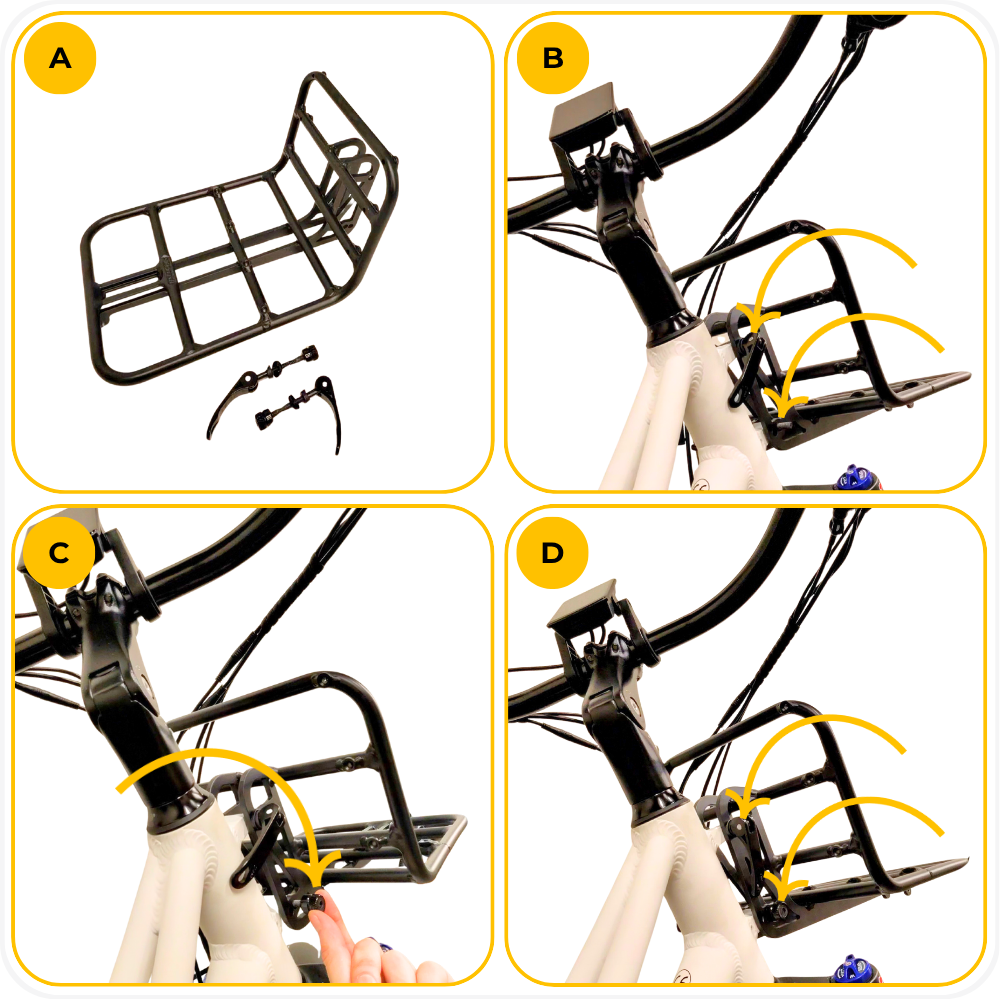

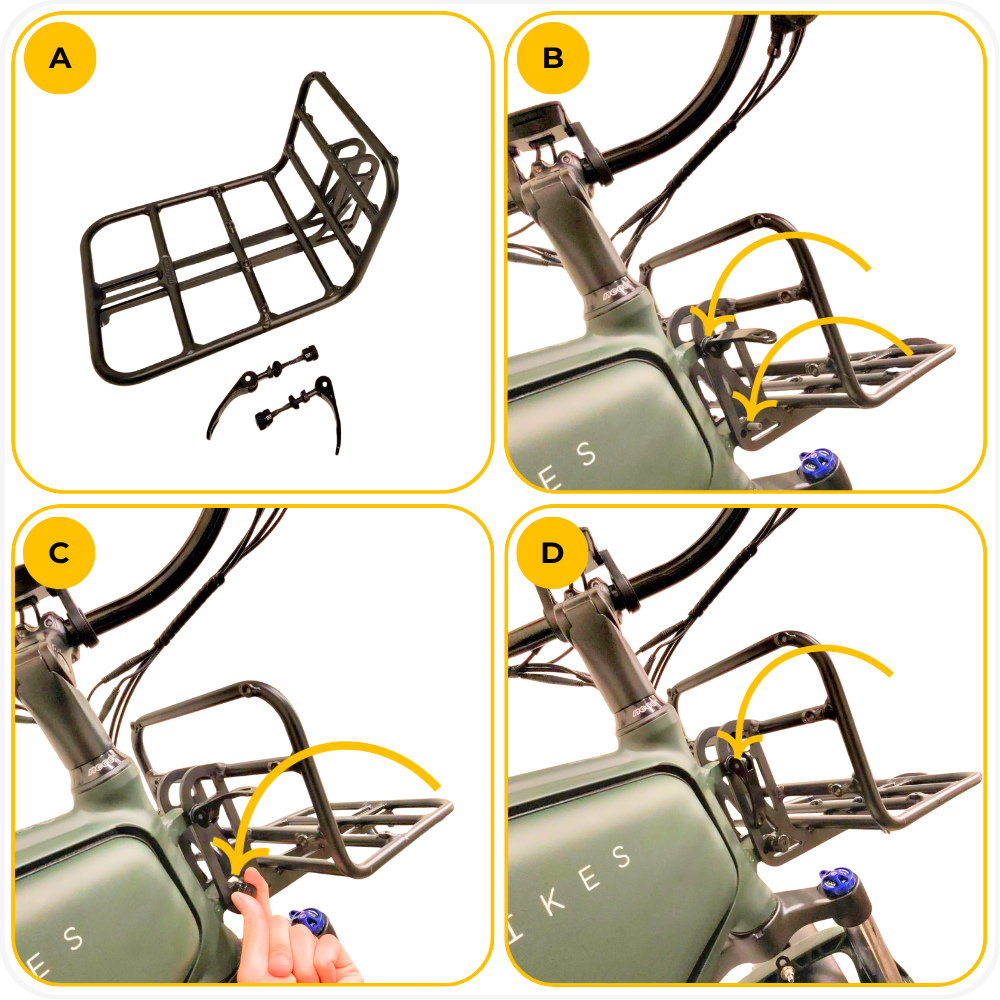

Step 2: Install the rack

1. Remove the quick-release bolts from the rack.
2. Slide the rack onto the head tube brackets and insert both bolts in opposite directions.
3. Tighten the nuts to about 85%.
4. Close the levers to lock in place and check that the rack does not move when twisted.

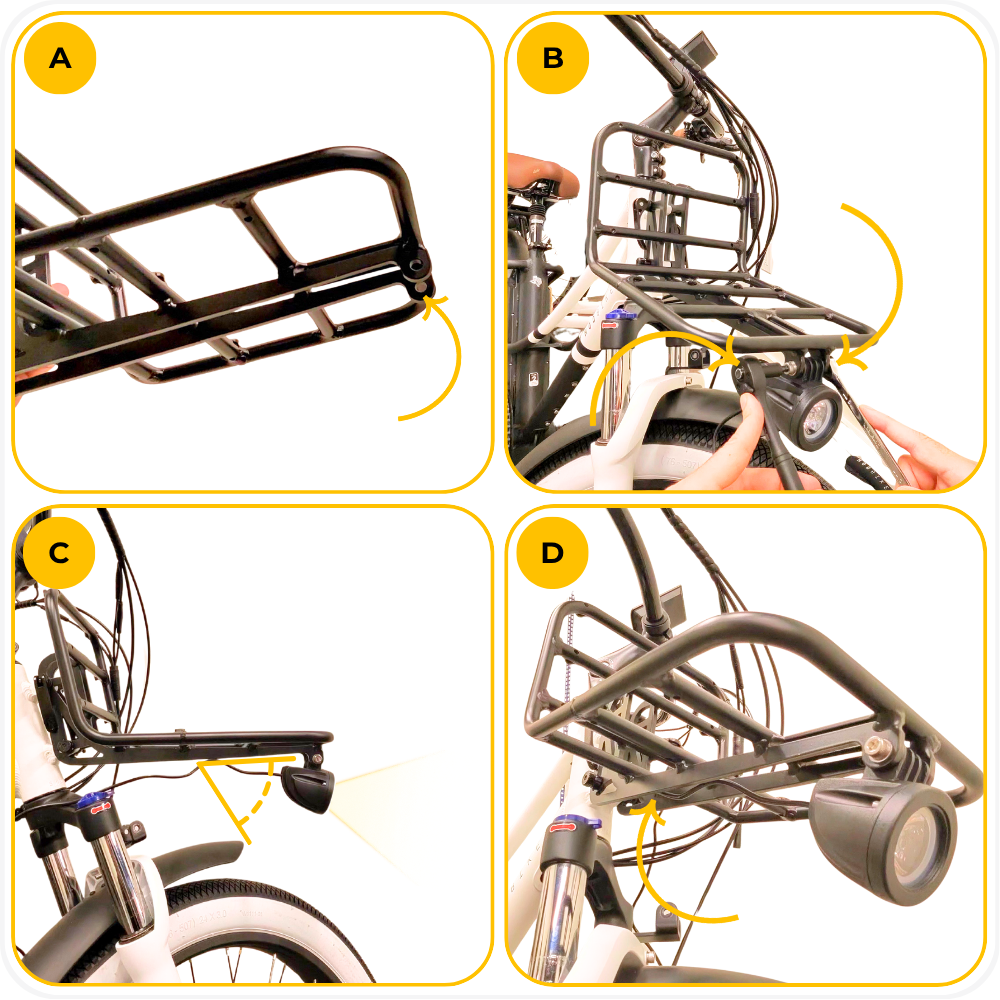

Step 3: Reinstall the headlight under the rack

1. Locate the light mount on the underside of the rack.
2. Slide the headlight slightly left or right until the holes align, then secure it using your wrenches.

Note: The headlight and rack brackets are the same width. Slide the headlight slightly left or right until the holes align naturally.

        C. Angle the light slightly down to light the road.

        D. Route the headlight cable under the rack and along the main harness.

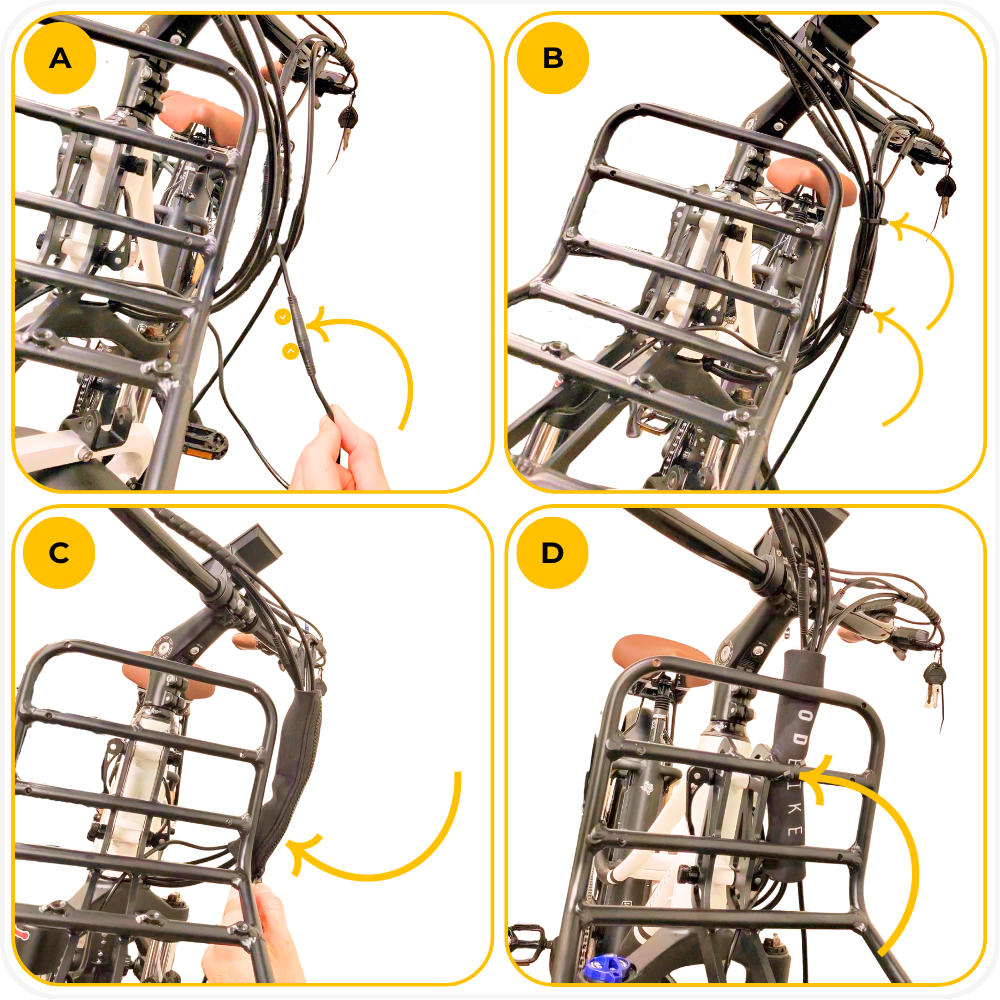

Step 4: Reconnect and tidy cables

1. Reconnect the headlight’s julet connector, making sure the arrows align.
2. Zip-tie the excess cable to the harness.
3. Reinstall the cable sleeve.
4. Secure the cable sleeve to the rack with a zip-tie to keep it centered and prevent any pulling when turning the handlebars.

Step 5: Test your headlight

1. Turn the bike on by pressing and holding the “i” button on the control panel.
2. Press and hold the “+” button to turn on the lights.
3. Confirm that the front headlight illuminates.

Steps for All MOD Bikes (Except MOD Easy)

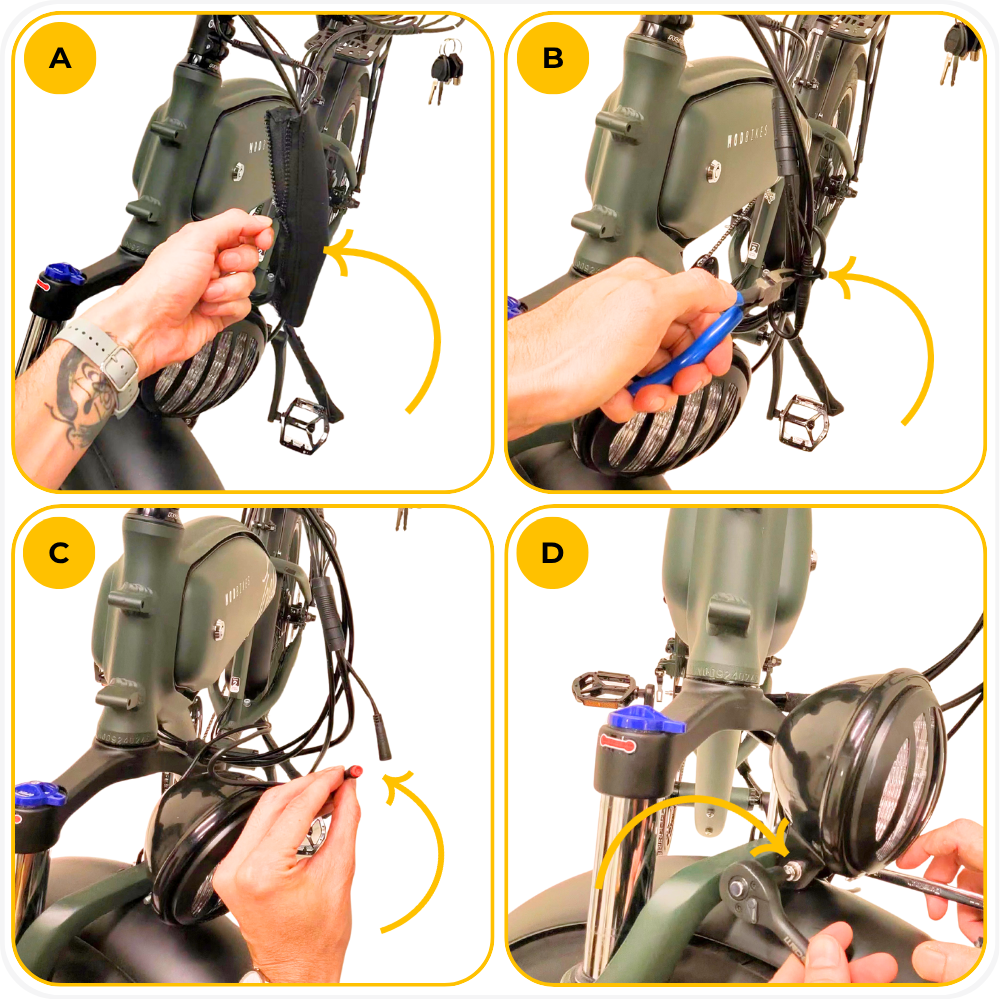

Step 1: Remove the headlight

1. Unzip the cable sleeve.
2. Cut the zip-ties.
3. Use your wrenches to remove the headlight bolt.
4. Disconnect the headlight’s julet connector and set the light aside.

Step 2: Install the rack

1. Remove the quick-release bolts from the rack.
2. Slide the rack onto the head tube brackets and insert both bolts in opposite directions.
3. Tighten the nuts to about 85%.
4. Close the levers to lock in place and check that the rack does not move when twisted.

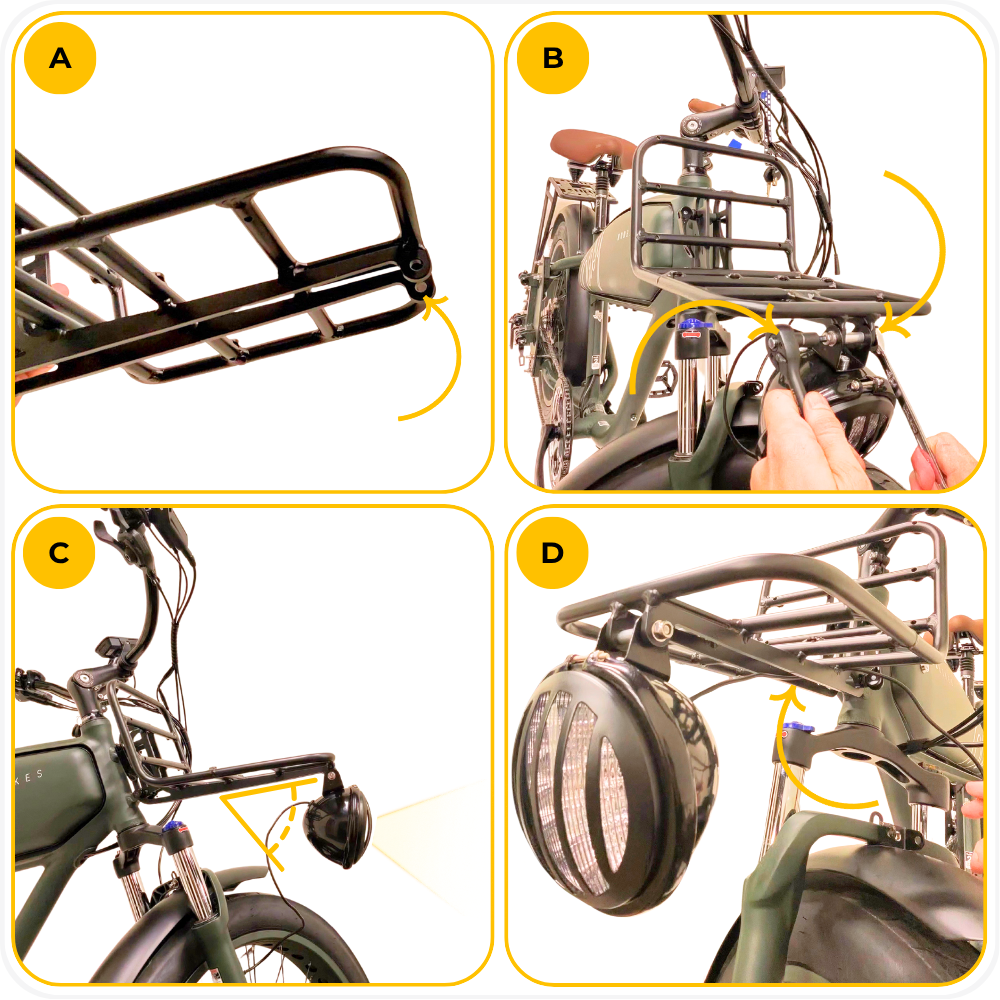

Step 3: Reinstall the headlight under the rack

1. Locate the light mount on the underside of the rack.
2. Secure the headlight using your wrenches.
3. Angle the light slightly down to light the road.
4. Route the headlight cable under the rack and along the main harness.

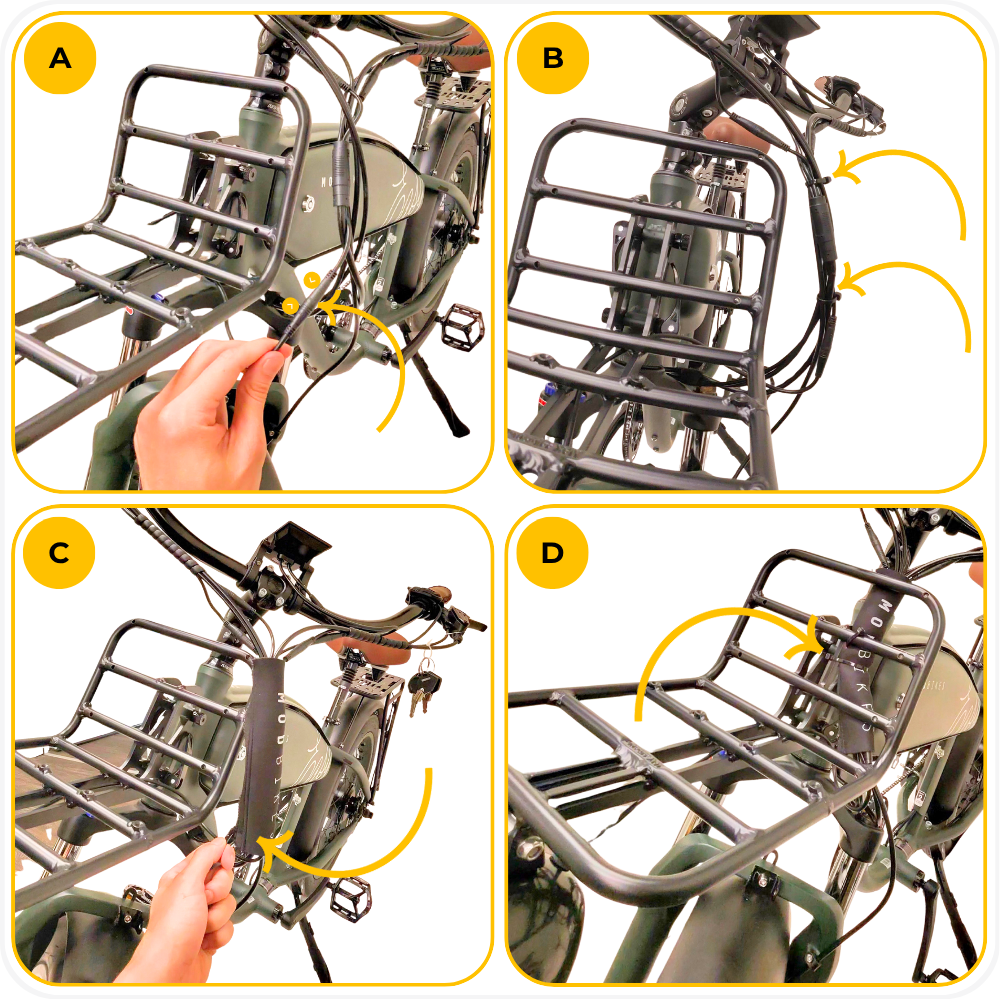

Step 4: Reconnect and tidy cables

1. Reconnect the headlight’s julet connector, making sure the arrows align.
2. Zip-tie the excess cable to the harness.
3. Reinstall the cable sleeve.
4. Secure the cable sleeve to the rack with a zip-tie to keep it centered and prevent any pulling when turning the handlebars.

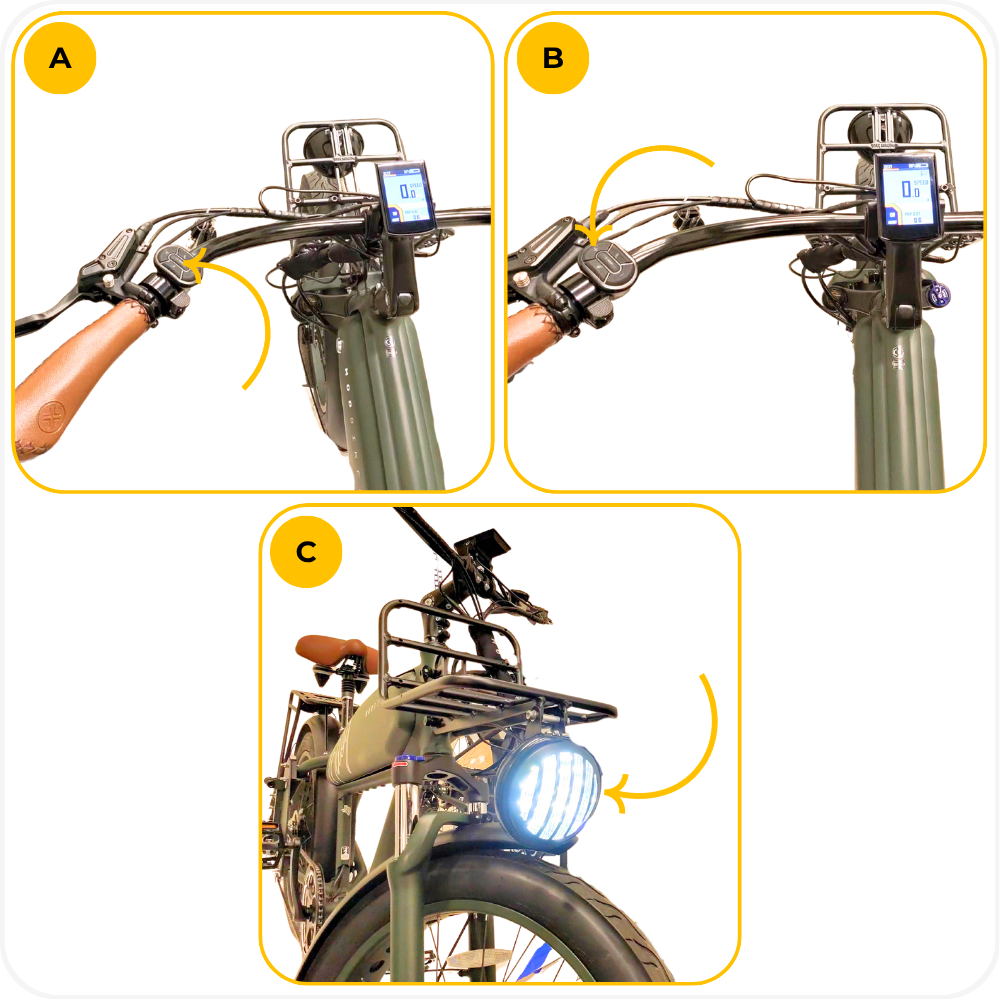

Step 5: Test your headlight

1. Turn the bike on by pressing and holding the “i” button on the control panel.
2. Press and hold the “+” button to turn on the lights.
3. Confirm that the front headlight illuminates.

 Troubleshooting

• Headlight won't turn on → Check that the julet connector is fully seated with arrows aligned. If the light still doesn’t work, confirm that the cable isn’t pinched and try again.
• Rack feels loose → Open the quick-release levers, tighten the nuts slightly, and re-secure until there is no movement when you twist the rack.
• Rack doesn’t fit onto the brackets → Contact support for assistance. In some cases, you can use a drill to slightly expand the top holes of the rack for a precise fit.
• Handlebars don't turn smoothly left or right → Make sure you added and positioned the zip-tie correctly when securing the headlight cable. If the cable pulls tight or restricts movement, re-zip-tie it loosely, leaving enough slack for full handlebars motion.
• Headlight beam is too high or low → Loosen the mount bolt, adjust the light angle, and retighten until it points slightly downward to light the road.
• Cables rubbing or pulling when turning → Make sure the headlight cable has enough slack. Reroute under the rack and secure with a zip-tie, leaving free play for full handlebar movement.

⚠️ Note: Do not ride if the rack or headlight is loose, or if the headlight cable pulls tight when turning the handlebars. Re-secure before use.

FAQs

• Do all MOD BIKES require the headlight to be moved?
  Yes. Every model requires removing the headlight first, installing the rack, and then reinstalling the light under the rack.
• Can I keep the lamp on the fork with the rack installed?
  No. The headlight and rack occupy the same space, so the light must be relocated to the rack.
• How tight should the quick-release levers be?
  The levers should take firm hand pressure to close. The rack should not move when twisted side to side.
• What is the weight limit for the front rack?
  The front rack can safely carry up to 44 lb (20 kg). If unsure, pack light and ensure the rack does not flex or wobble.
• How can I keep items secure inside the rack while riding?
  We recommend using the MOD Cargo Net, designed to fit perfectly over the front rack and keep your belongings snug and secure while you ride. You can find it here.

Warning

⚠️ Important Safety & Liability Notice
These instructions are provided as a general guide for MOD BIKES products. Always ensure that all screws, bolts, and fasteners are properly tightened and secured before riding. Improper assembly or maintenance may result in damage, injury, or voiding of warranty.

If you are not confident performing these steps, please seek assistance from a qualified MOD BIKES technician or authorized service provider. MOD BIKES shall not be held liable for injury, damage, or loss caused by improper use, assembly, or failure to follow these guidelines. Local laws and regulations may apply.
