MOD Mirror | User Guide

In this article: You’ll learn how to install and adjust your MOD Mirror on your handlebars.

This Article Applies to the Following Bikes

Difficulty

★☆☆ Easy

Estimated Time

0 - 5 Min

Before You Start

Tools you will need

• 4mm Allen Wrench included in your MOD Mirror

Preparation

• Ensure your bike is off and standing securely on its kickstand.
• Decide whether you want the mirror on the left or right handlebar

Steps | All Bikes

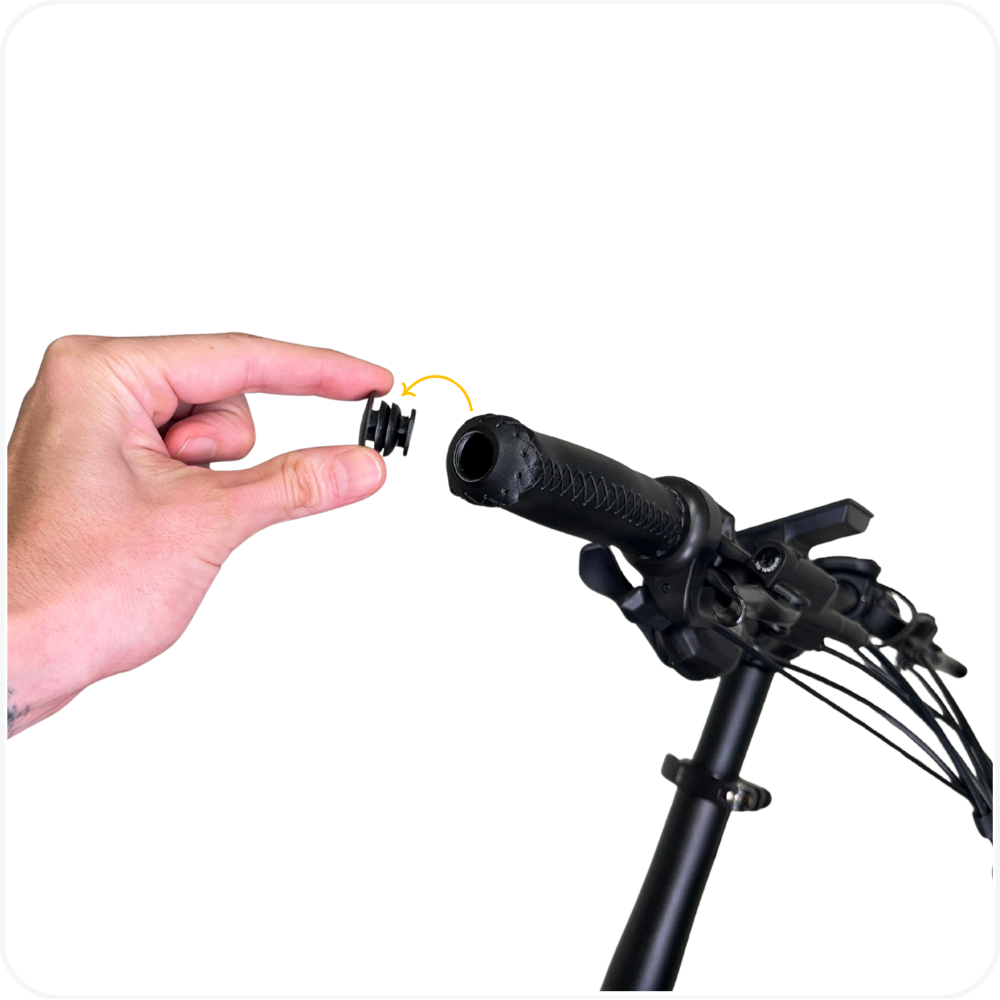

Step 1: Remove the Handlebar End Cap

• Gently pull the rubber end cap out of the handlebar grip on the side where you want to install the mirror.

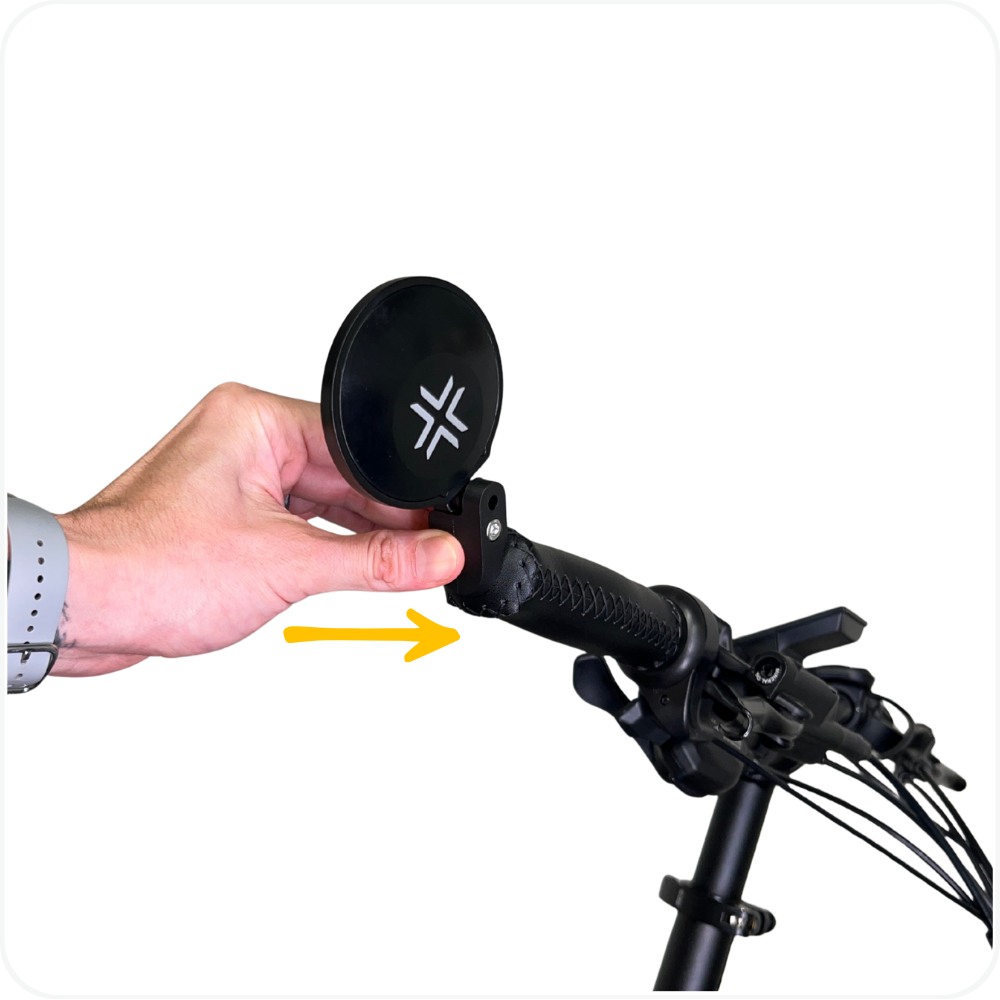

Step 2: Insert the Mirror

• Slide the mirror mount fully into the open end of the handlebar. If it feels too tight, remove it and turn the bolt slightly counterclockwise to reduce the width.

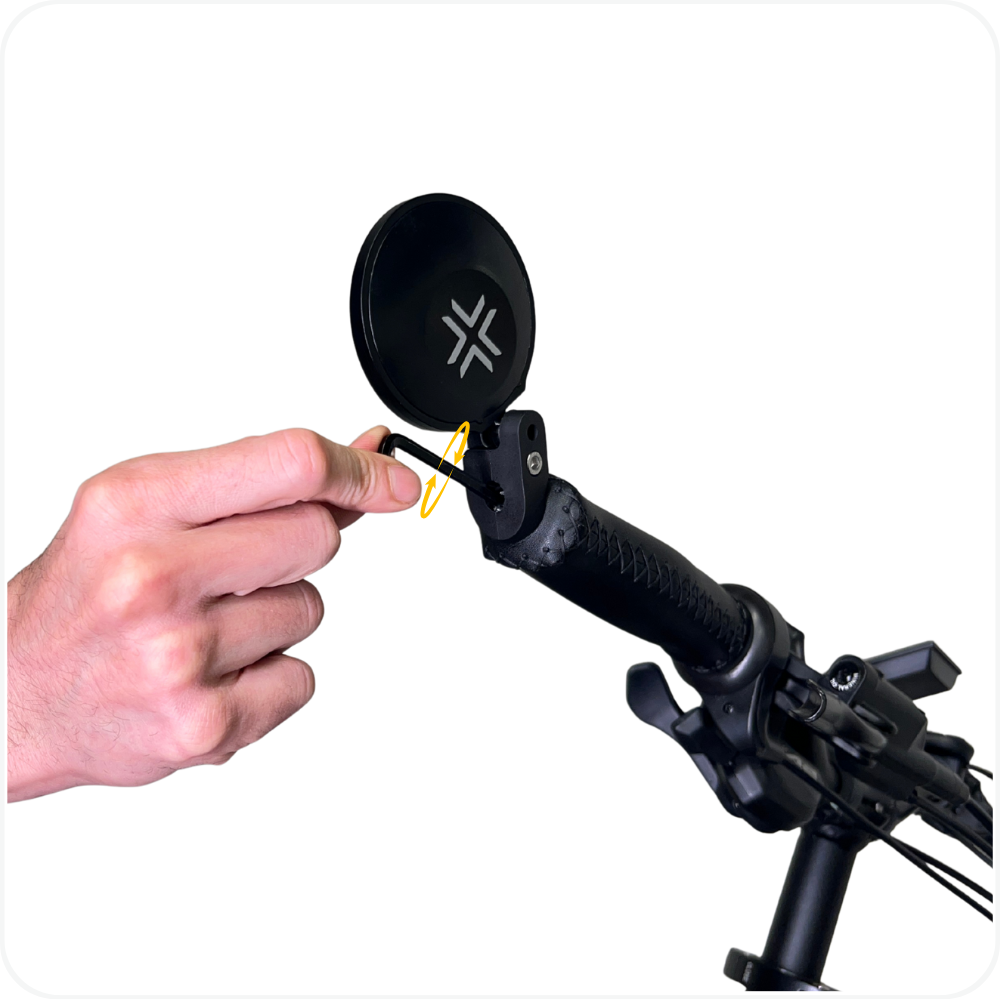

Step 3: Secure the Mirror

• Using the included Allen key, turn the bolt clockwise until the mount expands and feels secure inside the handlebar. The mirror mount should not twist or pull out once tightened.

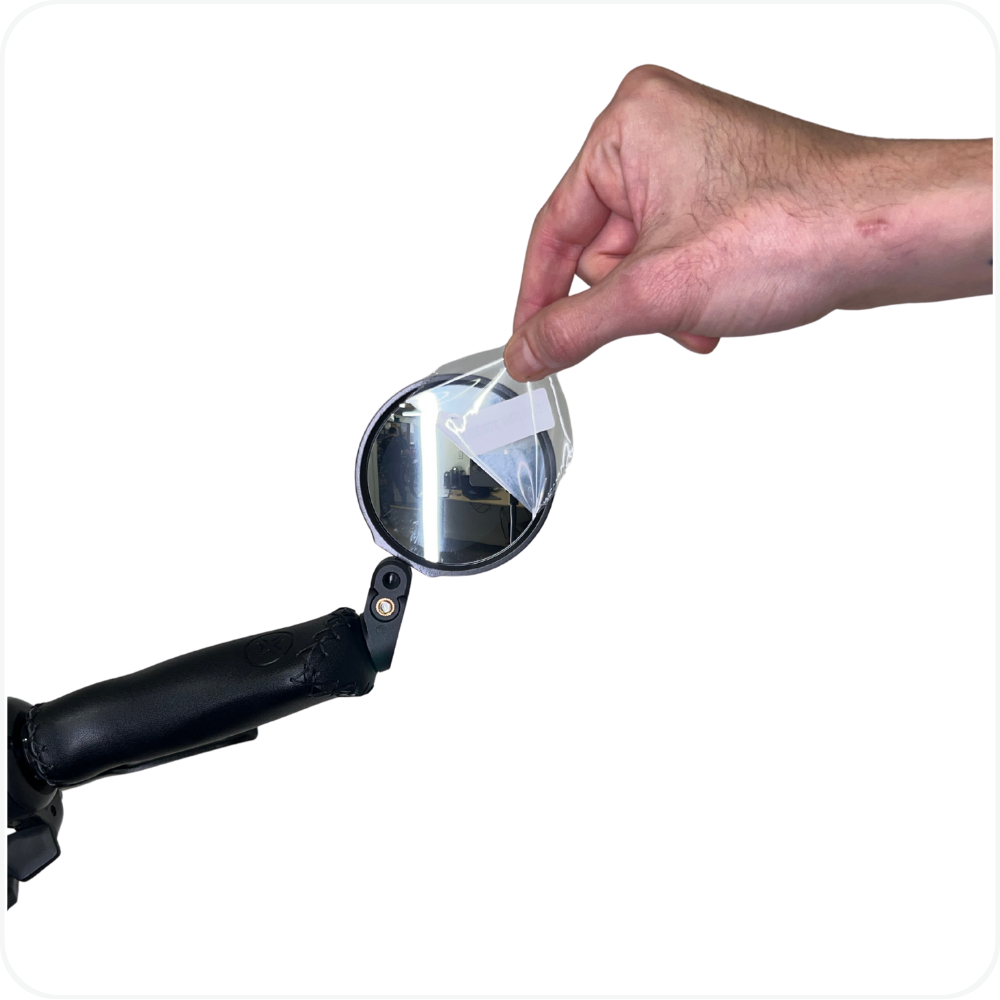

Step 4: Remove the Protective Film

• Peel off the protective plastic film from the mirror surface.

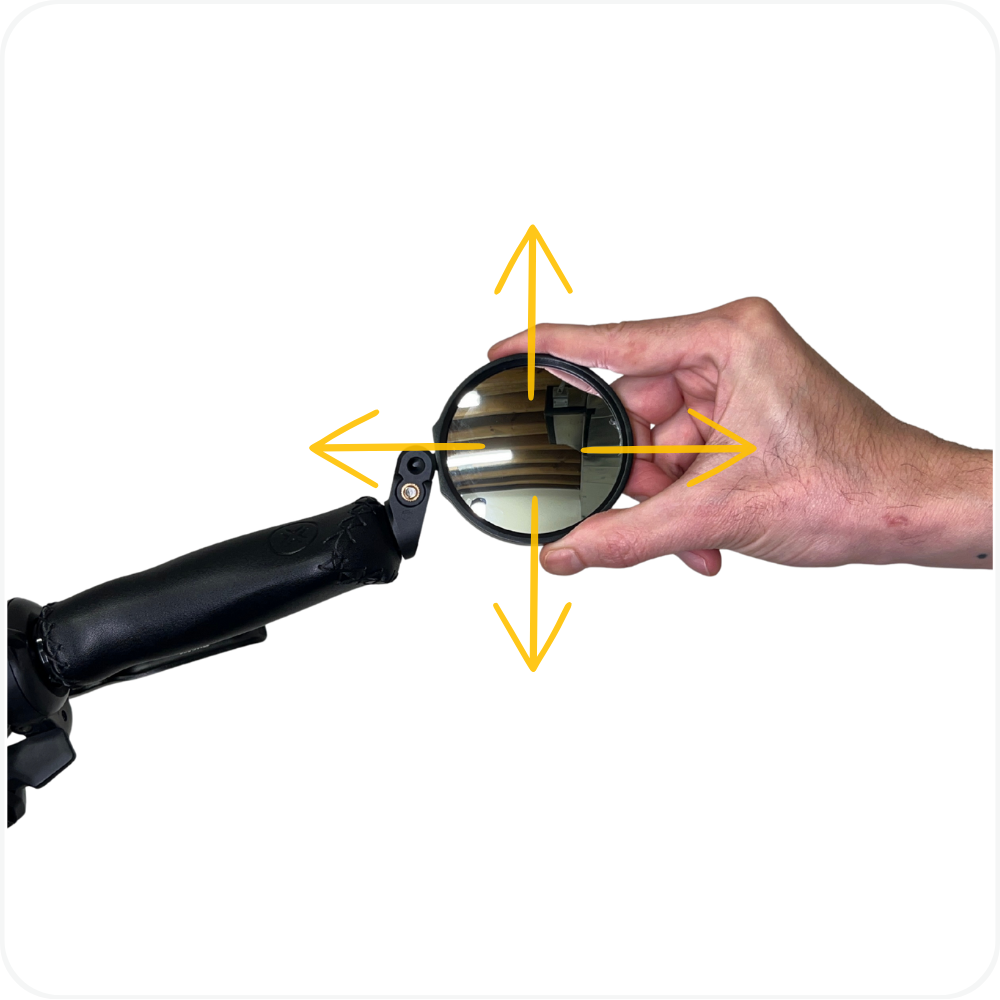

Step 5: Adjust the Mirror

• Rotate and tilt the mirror to your preferred viewing angle. The mirror can be adjusted freely and fine-tuned while seated on the bike.

Troubleshooting

• Mirror feels loose or wobbles → Use the Allen key to tighten the bolt clockwise until the mount fully expands inside the handlebar.
• Mirror won’t fit into the handlebar → Remove the mirror and turn the bolt counterclockwise to make the plastic insert narrower, then try again.
• Mirror rotates while riding → Tighten the expansion bolt slightly more and re-adjust the mirror angle.
• Mirror sits at a strange angle → Loosen the mirror slightly, reposition it, and retighten until secure.

FAQs

• Can I install the mirror on either side of the handlebar?
  Yes. The MOD Mirror can be installed on either the left or right handlebar.
• Do I need any extra tools?
  No. An Allen key is included with the mirror.
• Can I adjust the mirror after installation?
  Yes. The mirror can be rotated and adjusted freely even after it’s fully installed.
• Will this mirror fit all MOD bikes?
  Yes. The MOD Mirror is designed to fit standard MOD handlebar tubing.
• Should I retighten the mirror after riding?
  Yes. It’s normal to check and retighten the mirror after your first ride.

Warning

⚠️ Important Safety & Liability Notice

Always make sure the mirror is securely tightened before riding. A loose mirror may shift while riding and could affect visibility or safety.

Do not overtighten the expansion bolt, as this may damage the handlebar or mirror mount. If the mirror does not feel secure with reasonable tightening, stop installation and contact MOD BIKES support for assistance.

These instructions are provided as a general guide. MOD BIKES is not responsible for damage, injury, or loss caused by improper installation, misuse, or failure to follow these instructions. If you are not confident performing this installation, please seek assistance from a qualified technician.
