MOD Insulated Food Delivery Bag | User Guide

In this article: You’ll learn how to install the MOD Insulated Food Delivery Bag on your MOD BIKE. The MOD Insulated Food Delivery Bag mounts directly to any MOD BIKES Rear Rack.

This Article Applies to the Following Bikes

MODEL

MOD CITY+

✓

MOD BERLIN

✓

MOD GROOVE

✓

MOD CARGO

✓

MOD BLACK

MOD EASY

✓

MOD EASY SIDECAR

✓

Difficulty

★☆☆ Easy

Estimated Time

5 - 10 Min

Before You Start

Preparation

Ensure your bike is off and standing securely on its kickstand.

Steps

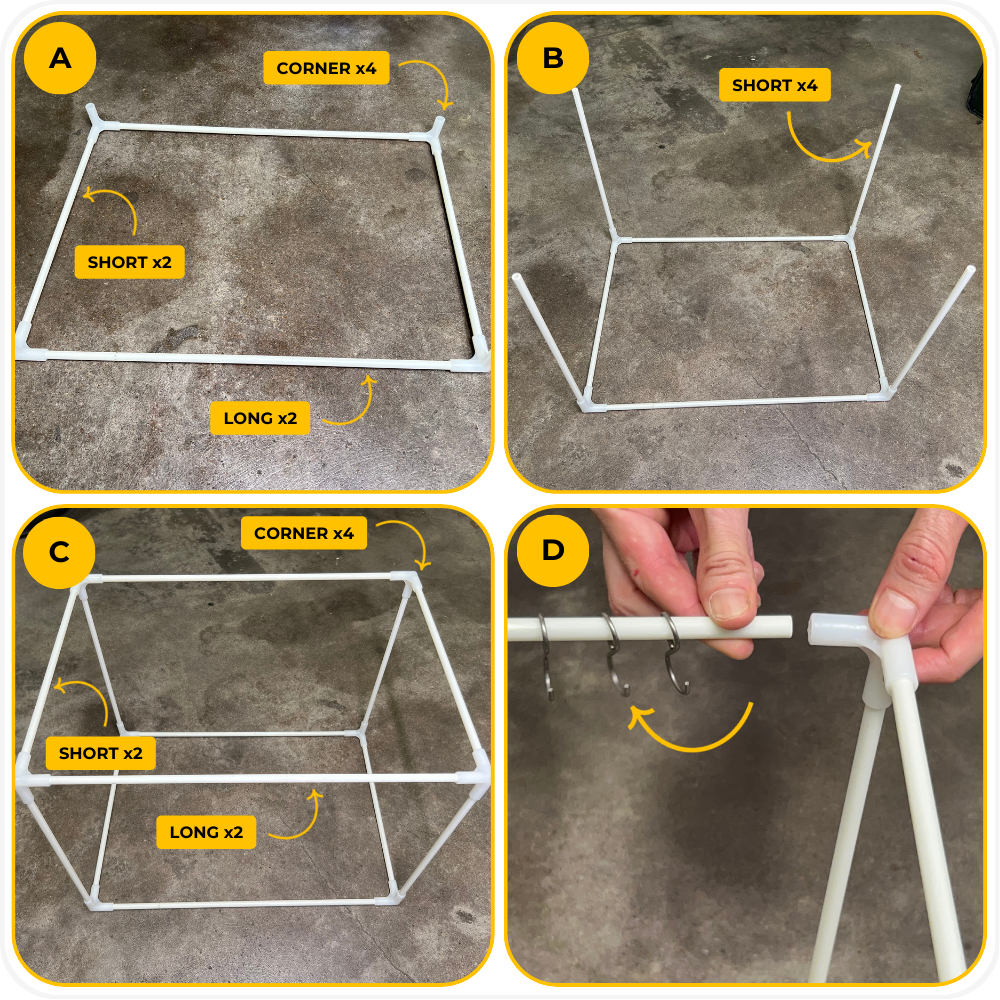

Step 1: Assemble the Frame

Lay out 2 long tubes and 2 short tubes on the ground. Use 4 corner connectors to form a flat rectangular base. Press each tube fully into the connectors.
Insert 4 short tubes vertically into the corner connectors. Make sure all posts are fully seated..
Assemble the top rectangle using 2 long tubes, 2 short tubes, and 4 corner connectors. Lower the top frame onto the vertical posts and press down until fully seated.
Locate the metal hanging hooks included in the kit. Insert the hooks on the top tubes. These hooks are used to hang bags, drinks, or other items inside the delivery bag.

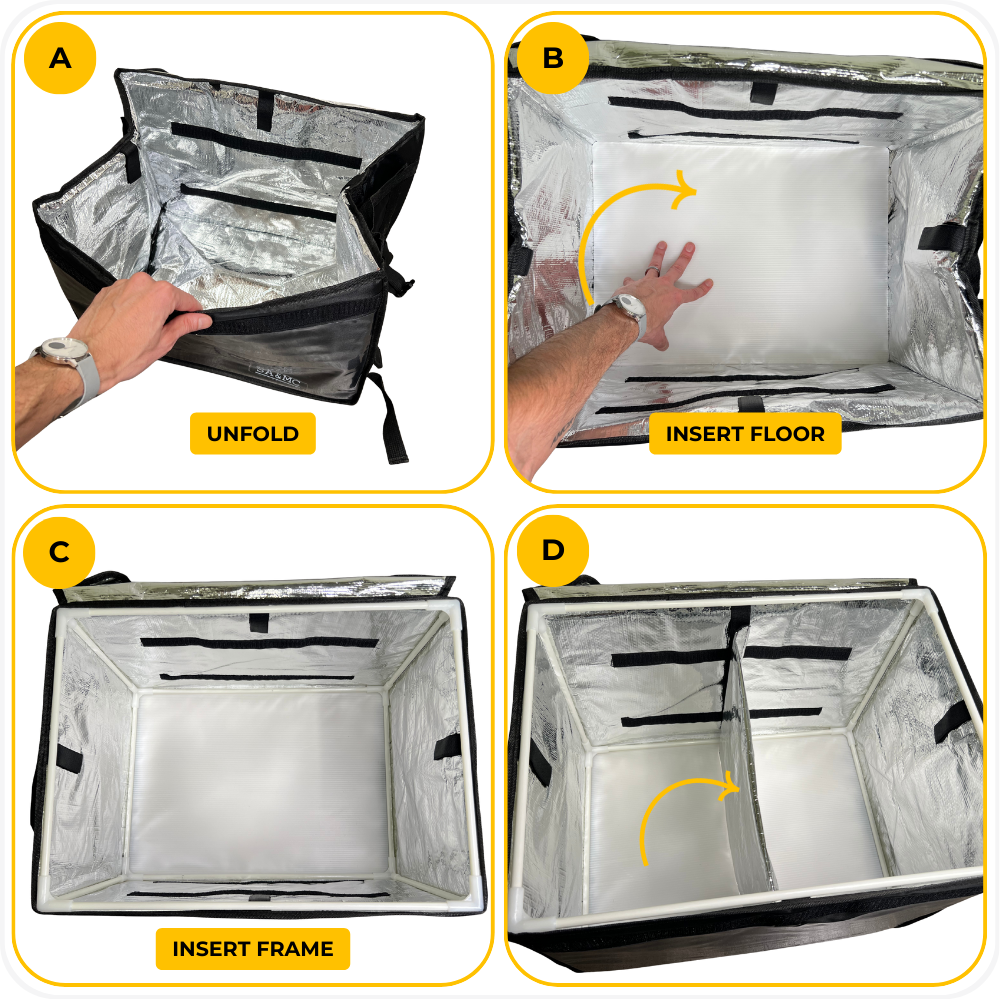

Step 2: Assemble the Insulated Bag

Fully unfold the insulated delivery bag and open it wide. Make sure all sides and corners are fully expanded.
Take the rigid floor panel and insert it inside the bag. Press it all the way down until it sits flat at the bottom.
Insert the assembled frame into the bag. Press down firmly on all four corners, one at a time, until the frame slides completely into place. The frame should be fully encased inside the bag with no corners sticking up.
Insert the divider inside the bag (optional). Use the Velcro strips to position it in the center or move it side-to-side. You can adjust the divider layout based on what you’re carrying.

Step 3: Attach the Bag to the Base

Place the assembled insulated bag onto the metal base. The front of the base is the side with the plastic snap slider protruding forward.
Orient the bag so that the bag opening faces the rear of the bike when mounted.

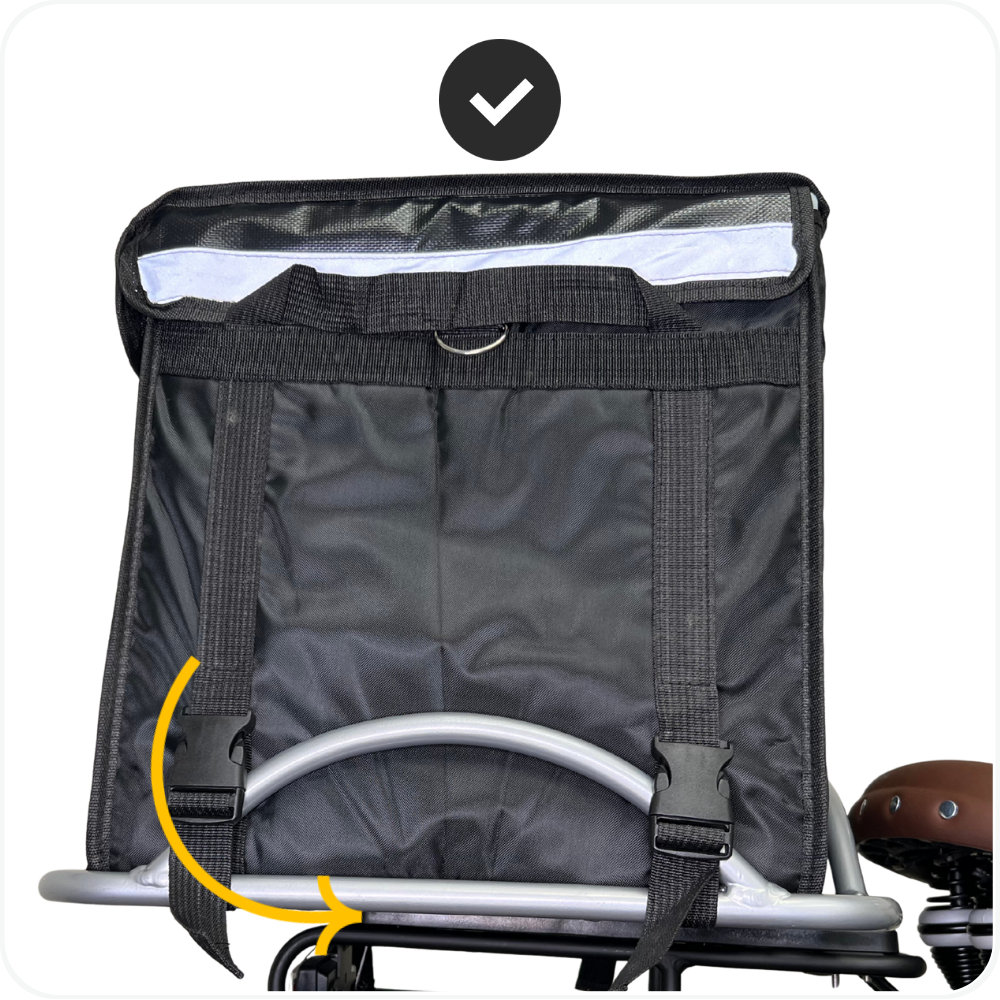

Pull the strap at each corner of the bag around the metal frame.
Feed each strap through its buckle and snap it securely into place.
Repeat for all four straps, making sure the bag is snug and evenly secured to the base.

Step 4: Snap the Delivery Bag into Place

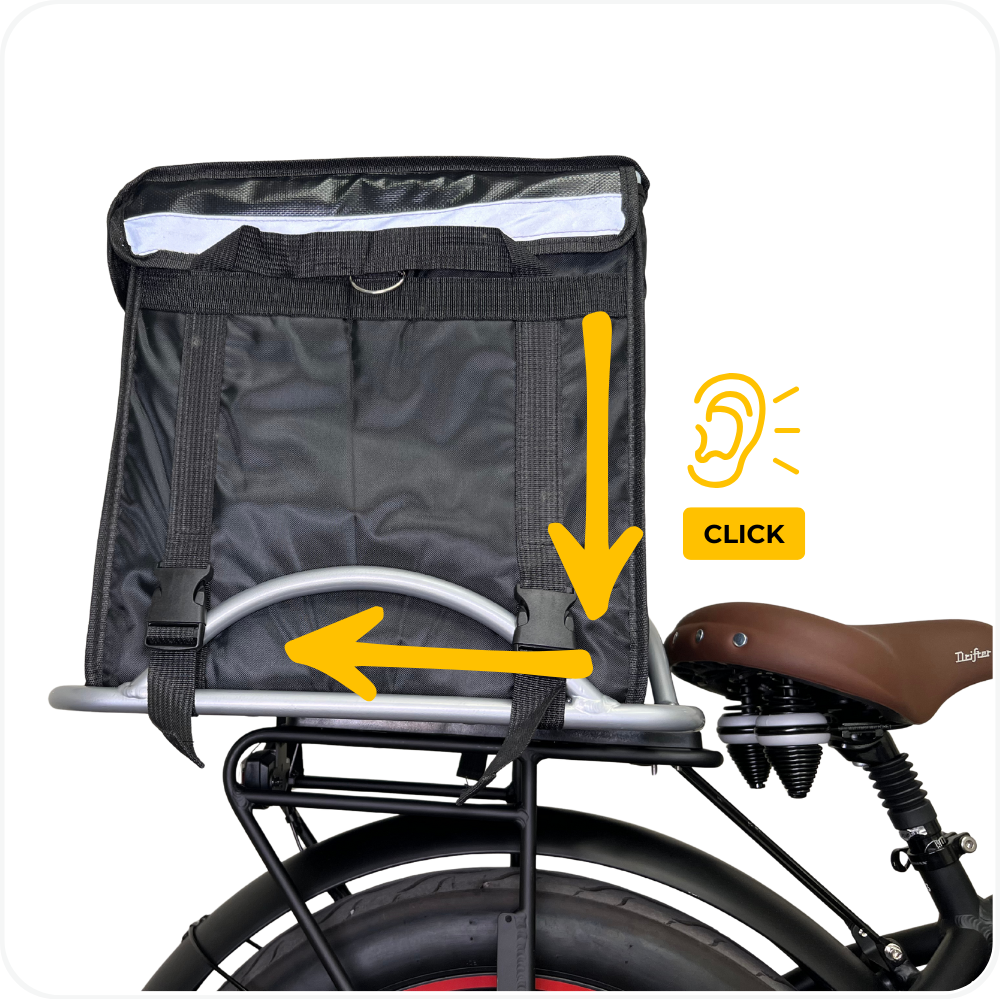

Push the delivery bag straight down and back until you hear a “click.”
This sound confirms the bag is securely locked onto the rack.

Step 5: Check Delivery Bag is Secured

You shouldn’t see any gap between the delivery bag and the rack.

To Remove the Delivery Bag

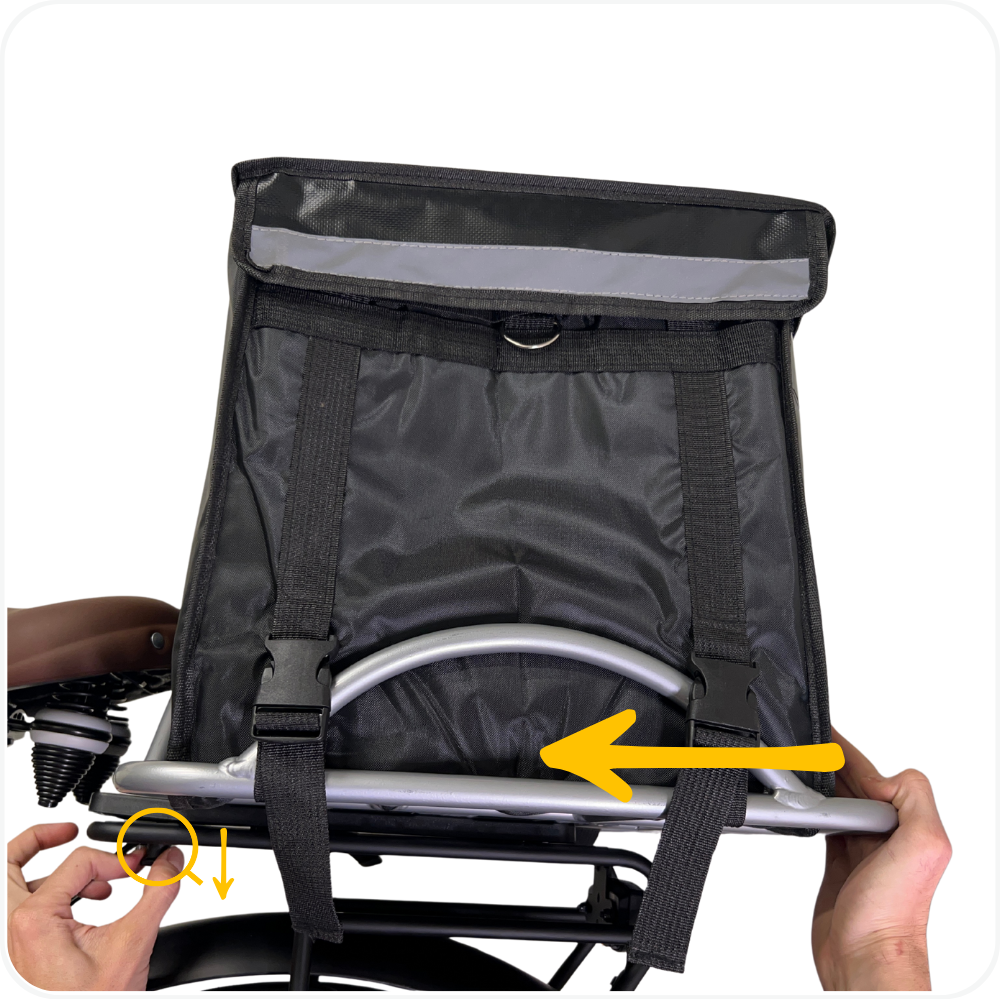

To remove the delivery bag, pull the locking pin downward to release.
Then push the delivery bag forward toward the seat to disengage it from the rack.

Keep Your Delivery Bag Secure

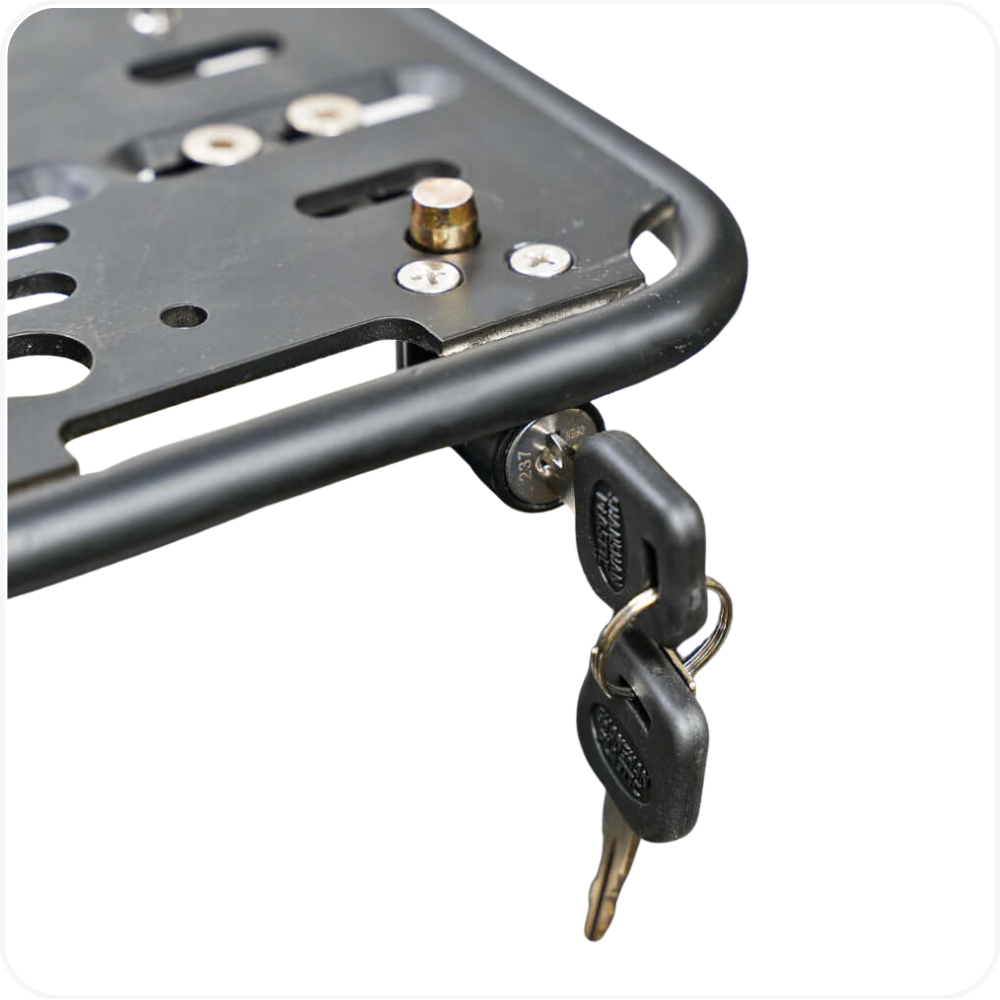

Add an extra layer of protection with the MOD Snap-On Lock, designed to help secure your delivery bag and compatible accessories.

Troubleshooting

Delivery bag won’t click into place → Make sure the delivery bag is oriented correctly with the plastic snap slider protruding forward. Re-align the mounting pins with the rack slots, then push the delivery bag down and back until you hear a click.
Delivery bag feels loose after installation → Remove the delivery bag and reinstall it, ensuring you push firmly until the locking mechanism fully engages. There should be no visible gap between the delivery bag and the rack.
Unable to remove the delivery bag → Pull the locking pin fully downward before pushing the delivery bag forward toward the seat to disengage it from the rack.

⚠️ Note: Do not ride if the delivery bag is loose. Re-secure before use.

FAQs

How do I carry the delivery bag when it’s off the bike?
Use the built-in carry straps for easy off-bike transport.
Can I use a Snap-On Lock with the delivery bag?
Yes. The MOD Snap-On Lock can be used to add an extra layer of security when the delivery bag is mounted to the rack.
Do I need to use the metal black brackets included with the delivery bag?
No. You can disregard the metal brackets included in the kit. They are designed for mounting the bag to other rack systems. MOD BIKES uses a snap-on mounting system, so these brackets are not required. You may keep them for future use or discard them.

Warning

⚠️ Important Safety & Liability Notice

Always ensure the delivery bag is fully locked into the Snap-On Rear Rack before riding. Riding with an improperly secured delivery bag may result in damage, loss of cargo, injury, or voiding of warranty.

Do not attach accessories to the delivery bag or exceed its intended storage use. Always distribute weight evenly and secure contents inside the bag before riding.

If you are not confident performing installation or removal, please contact MOD BIKES Support or a qualified technician. MOD BIKES is not responsible for damage or injury caused by improper installation, misuse, or failure to follow these instructions.
